Weight Transmitter
for automated systems

Weighing solutions for
industrial process control
with Ethernet TCP/IP.

Weight Transmitter
AUTOMATION


50
Dedicated products
+
ENOD4-B ENOD4-C WEBLAU TLB 485 TLB4 PROFIBUS TLB ETHERNET TCP/IP TLS 485
  eNod4-B DIN     eNod4-C DIN



For Belt scale, Belt weight feeder
  • Continuous weighing, Belt scales, Belt weigh feeders
  • ±500 000 d, 400 meas/s
  • Presentation on rail DIN housing
  • Up to 8 strain gauge load cells
  • Load cell failure detection device
  • Programmable digital filters
  • Input for belt speed sensor (IO+ option)
  • Continuous flow rate and weight total calculation
  • Flow control with built-in self-adjustable PID
  • 4 digital inputs and 4 digital outputs for the dosing process control and totalisation by pulses
  • Analog output 0-10V or 4-20mA (IO+ option)
  • 1 USB port for setting by PC
  • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
  • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
  • Integrated web server for monitoring and remote setting
  • 1 RS485 for eNodTouch touch screen panel




For Dynamic checkweighing
  • Checkweighing, Grading controller
  • ±500 000 d, 1 600 meas/s
  • Presentation on rail DIN housing
  • Certification in legal metrology according to OIML R51 for use in automatic checkweigher
  • Dynamic Checkweighing functions
  • Up to 8 strain gauge load cells
  • Load cells failure detection device
  • Programmable digital filters
  • 2 digital inputs (4 with IO+ option) and 4 outputs
  • Analog output 0-10V or 4-20mA (IO+ option)
  • 1 USB port for setting by PC
  • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
  • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
  • Integrated web server for monitoring and remote setting
  • 1 RS485 for eNodTouch touch screen panel

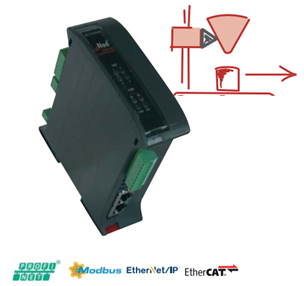

  eNod4-D DIN     eNod4-F DIN



Remplisseage, Dosage, Filling, Dosing
  • Filling, Dosing controller
  • ±500 000 d, 1 600 meas/s
  • Presentation on rail DIN housing
  • Legal metrology certification according to OIML R61 for use in automatic filling machines
  • Integrated functions for high speed batch dosing by filling or unloading
  • Up to 8 strain gauge load cells
  • Load cell failure detection device
  • Programmable digital filters
  • 2 digital inputs (4 with IO+ option) and 4 outputs
  • Analog output 0-10V or 4-20mA (IO+ option)
  • 1 USB port for setting by PC
  • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
  • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
  • Integrated web server for monitoring and remote setting
  • 1 RS485 for eNodTouch touch screen panel




For Loss-in-weight feeder
  • Continuous weighing, Loss-in-weight feeders
  • ±500 000 d, 200 meas/s
  • Presentation on rail DIN housing
  • Up to 8 strain gauge load cells
  • Load cell failure detection device
  • Programmable digital filters
  • Continuous flow rate and weight total calculation
  • Flow control with built-in self-adjustable PID
  • Automatic control of feeder refilling
  • 4 digital inputs and 4 digital outputs for the dosing process control
  • Analog output 0-10V or 4-20mA (IO+ option)
  • 1 USB port for setting by PC
  • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
  • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
  • Integrated web server for monitoring and remote setting
  • 1 RS485 for eNodTouch touch screen panel
  TLB4 RS485     TLB4 PROFIBUS



DIGITAL WEIGHT TRANSMITTER ( RS485 )
Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 3 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Mounting on Omega/DIN rail for front/back panel
  • 4 channels A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999




DIGITAL WEIGHT TRANSMITTER (RS485 - PROFIBUS )
Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

  • PROFIBUS DP port
  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 3 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Mounting on Omega/DIN rail for front/back panel
  • 4 channels A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999
  TLB-485     TLB-Ethernet TCP/IP



DIGITAL WEIGHT TRANSMITTER ( RS485 )
Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 25 x 115 x 120 mm.

  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 3 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
  • Back panel mounting on Omega/DIN rail
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

European Community registered design.




DIGITAL WEIGHT TRANSMITTER (RS485-Ethernet TCP/IP )
Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 25 x 115 x 120 mm.

  • Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 3 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
  • Back panel mounting on Omega/DIN rail
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

European Community registered design.
  TLS-485     WEBLAU



DIGITAL WEIGHT TRANSMITTER ( RS485 )
Weight transmitter/indicator with six-digit red LED display (8 mm height). Four-key keypad for the system calibration. Six indicator led. Dimensions: 123 x 92 x 50 mm.

  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 2 optorelays logic outputs
  • Mounting on Omega/DIN rail for back panel or junction box
  • Box versions: IP67, IP67 ATEX II 3GD
  • A/D converter 24bit (16000000 points) 80 Hz
  • Display range 999999




WEB SERVER MASTER FOR W AND TLB SERIES (max 8)
  • Ideal for supervision, management and remote control of the W series weight indicators and TLB series weight transmitters (max 8 instruments)
  • RS485 port (Modbus RTU)
  • Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • Back panel mounting on Omega/DIN rail
The WEBLAU device is a useful support for all installers/dealers of Laumas weighing instruments as it makes easier the remote maintenance, allowing to control wherever, the status of the instruments connected to RS485 including the possible anomalies.
