Weight Indicators
for automated systems

Weighing solutions for
industrial process control.

WEIGHING AND
AUTOMATION


80
Dedicated products
+
LAUMAS
Laumas
Scaime
Scaime
Supmeter
Supmeter
  • Supmeter
  •   BST100-E11/E01/E21     BST100-A11+/A21



    Belt/Loss-in-weight Weighfeeder Controller
    • Belt Weigher with Weight Totalizing.
    • Ration Belt Weighfeeder with Ration Flow Feeding.
    • Loss-in-weight Weighfeeder with Ration Flow Feeding.
    • EMC design with high anti-jam for industrial environment.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 128×64 LCD display screen with 7 background colors.
    • 24-bit Σ-△ADC with internal resolution 1/1,000,000.
    • High sampling frequency 400Hz.




    Belt/Loss-in-weight Weighfeeder Controller
    • Belt Weigher with Weight Totalizing.
    • Ration Belt Weighfeeder with Ration Flow Feeding.
    • Loss-in-weight Weighfeeder with Ration Flow Feeding.
    • EMC design with high anti-jam for industrial environment.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 128×64 LCD display screen with 7 background colors.
    • 4+4 Red LED digital tubes for digit display.
    • 24-bit Σ-△ADC with internal resolution 1/1,000,000.
      BST100-E81     BST100-B11+/B21



    Belt/Loss-in-weight Weighfeeder Controller
    • Belt Weigher with Weight Totalizing.
    • Ration Belt Weighfeeder with Ration Flow Feeding.
    • Loss-in-weight Weighfeeder with Ration Flow Feeding.
    • EMC design with high anti-jam for industrial environment.
    • DC24V power input with reverse polarity protection.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 128×64 LCD display screen with 7 background colors.
    • 24-bit Σ-△ADC with internal resolution 1/1,000,000.




    Belt/Loss-in-weight Weighfeeder Controller
    • Belt Weigher with Weight Totalizing.
    • Ration Belt Weighfeeder with Ration Flow Feeding.
    • EMC design with high anti-jam for industrial environment.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 8+4+4 Red LED digital tubes for English&digit display..
    • 24-bit Σ-△ADC with internal resolution 1/1,000,000.
    • High sampling frequency 400Hz.
    • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.

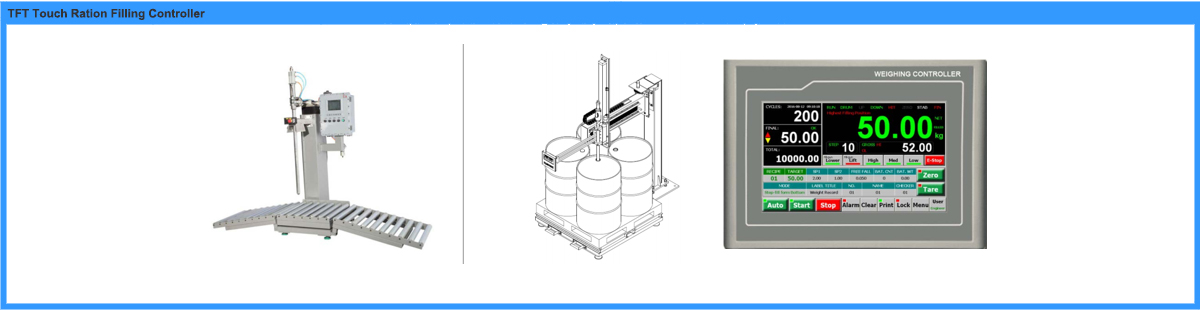

      BST106-M10[AL]     BST106-M10[BH]

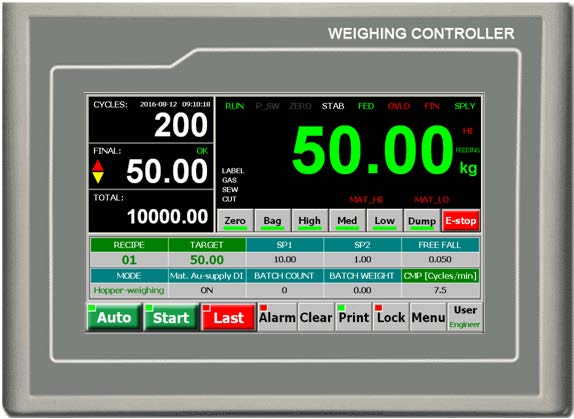

    TFT-Touch Ration Packing Controller [1-Scale]
    • Single-weighing-hopper Ration Packing Scale.
    • Single-weighing-bag Ration Packing Scale.
    • Loss-in-weight Ration Packing Scale.
    • EMC design with high anti-jam for industrial environment.
    • DC24V power input with reverse polarity protection.
    • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
    • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
    • 24-bit Σ-△ADC with internal resolution 1/1,000,000.

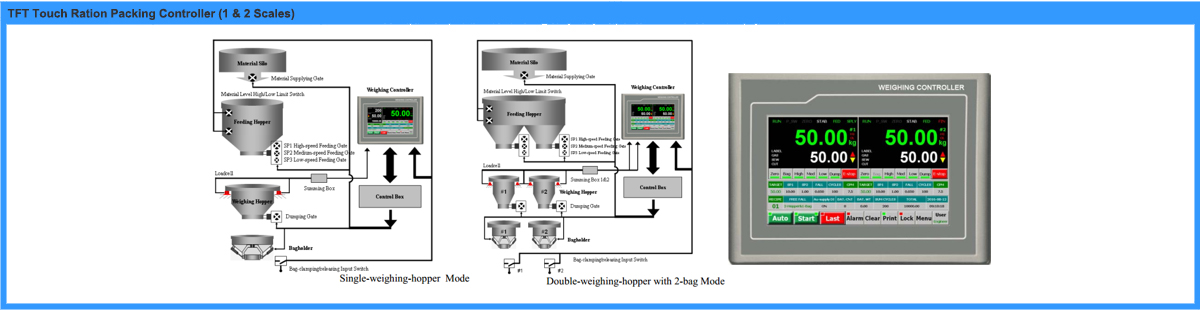

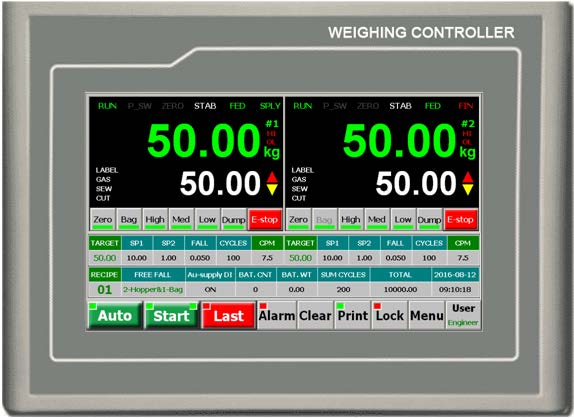

    TFT-Touch Ration Packing Controller [2-Scale]
    • Ration Packing Scale with 2-weighing-hopper&1/2-bag.
    • Ration Packing Scale with 2-weighing-bag.
    • EMC design with high anti-jam for industrial environment.
    • DC24V power input with reverse polarity protection.
    • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
    • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
    • 24-bit Σ-△ADC with internal resolution 1/1,000,000.
    • High sampling frequency 800Hz.



  • Luamas
  •   W100     W200



    WEIGHT INDICATOR
    • Panel mounting
    • Six-digit red LED display, 14 mm height
    • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
    • 3 logic inputs, 5 relay outputs
    • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
    • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)




    WEIGHT INDICATOR (for weighing and batching)
    • Possible installations: panel, wall
    • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
    • Six-digit red LED display, 14 mm height
    • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
    • 3 logic inputs, 5 relay outputs
    • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
    • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
    • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
      W200BOX     WEBLAU



    WEIGHT INDICATOR INTO IP67-64 CASE (for weighing and batching)
    • Wall mounting
    • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
    • Six-digit red LED display, 14 mm height
    • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
    • 3 logic inputs, 5 relay outputs
    • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
    • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
    • Optional fieldbuses: Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.




    WEB SERVER MASTER FOR W AND TLB SERIES (max 8)
    • Ideal for supervision, management and remote control of the W series weight indicators and TLB series weight transmitters (max 8 instruments)
    • RS485 port (Modbus RTU)
    • Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
    • Back panel mounting on Omega/DIN rail
    The WEBLAU device is a useful support for all installers/dealers of Laumas weighing instruments as it makes easier the remote maintenance, allowing to control wherever, the status of the instruments connected to RS485 including the possible anomalies.

  • Scaime
  •   eNod4-B BOX

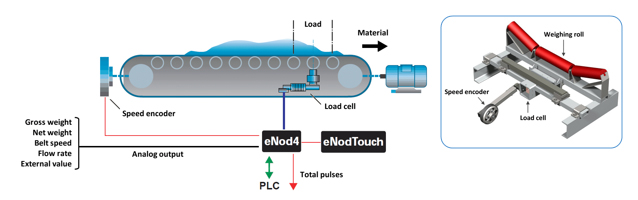

    eNod4-B BOX Continuous weighing, Belt scales, Belt weigh feeders

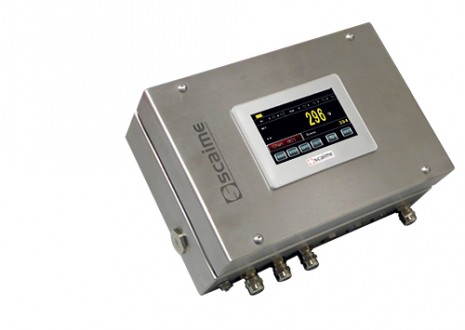

    eNod4-B BOX
    ±500 000 d, 400 meas/s

    • Presentation in stainless steel IP65 housing
    • Up to 8 strain gauge load cells
    • Load cells failure detection device
    • Programmable digital filters
    • Input for belt speed sensor (IO+ option)
    • Continuous flow rate and weight total calculation
    • Flow control with built-in self-adjustable PID
    • 4 digital inputs and 4 digital outputs for the dosing process control and totalisation by pulses
    • Analog output 0-10V or 4-20mA (IO+ option)
    • 1 USB port for setting by PC
    • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
    • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
    • Integrated web server for monitoring and remote setting
    • Optional integrated eNodTouch-MS/ML touch screen panel

      eNod4-F BOX

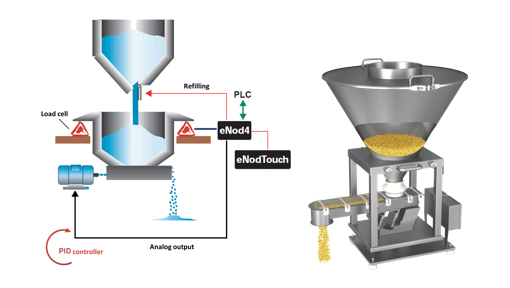

    eNod4-F BOX Continuous weighing, Loss-in-weight feeders
    eNod4-F BOX
    ±500 000 d, 200 meas/s

    • Presentation in stainless steel IP65 housing
    • Up to 8 strain gauge load cells
    • Load cells failure detection device
    • Programmable digital filters
    • Continuous flow rate and weight total calculation
    • Flow control with built-in self-adjustable PID
    • Automatic control of feeder refilling
    • 4 digital inputs and 4 digital outputs for the dosing process control)
    • Analog output 0-10V or 4-20mA (IO+ option)
    • 1 USB port for setting by PC
    • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
    • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
    • Integrated web server for monitoring and remote setting
    • Optional integrated eNodTouch-MS/ML touch screen panel

      eNod4-C BOX

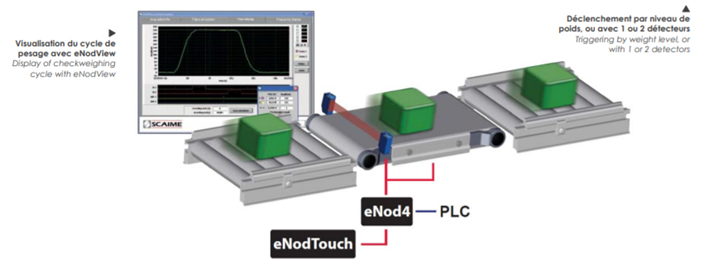

    eNod4-C BOX Checkweighing, Grading controller
    eNod4-C BOX
    ±500 000 d, 1600 meas/s

    • Presentation in stainless steel IP65 housing
    • Certification in legal metrology according to OIML R51 for use in automatic checkweigher
    • Dynamic Checkweighing functions
    • Up to 8 strain gauge load cells
    • Load cells failure detection device
    • Programmable digital filters
    • 2 digital inputs (4 with IO+ option) and 4 outputs
    • Analog output 0-10V or 4-20mA (IO+ option)
    • 1 USB port for setting by PC
    • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
    • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
    • Integrated web server for monitoring and remote setting
    • Optional integrated eNodTouch-MS/ML touch screen panel

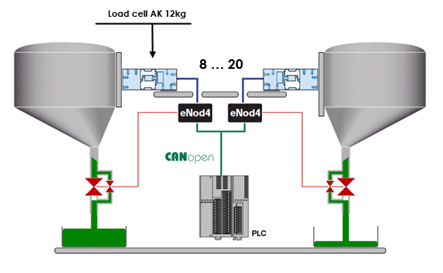

      eNod4-D BOX
    eNod4-D BOX Filling, Dosing controller
    eNod4-D BOX
    ±500 000 d, 1600 meas/s

    • Presentation in stainless steel IP65 housing
    • Legal metrology certification according to OIML R61 for use in automatic filling machines
    • Integrated functions for high speed batch dosing by filling and unloading
    • Up to 8 strain gauge load cells
    • Load cells failure detection device
    • Programmable digital filters
    • 2 digital inputs (4 with IO+ option) and 4 outputs
    • Analog output 0-10V or 4-20mA (IO+ option)
    • 1 USB port for setting by PC
    • Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
    • Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
    • Integrated web server for monitoring and remote setting
    • Optional integrated eNodTouch-MS/ML touch screen panel
