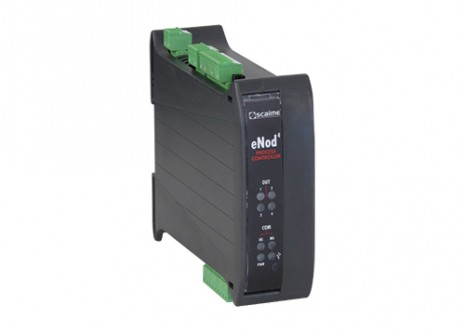

• Presentation on rail DIN housing
• Up to 8 strain gauge load cells
• Load cell failure detection device
• Programmable digital filters
• Input for belt speed sensor (IO+ option)
• Continuous flow rate and weight total calculation
• Flow control with built-in self-adjustable PID
• 4 digital inputs and 4 digital outputs for the dosing process control and totalisation by pulses
• Analog output 0-10V or 4-20mA (IO+ option)
• 1 USB port for setting by PC
• Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
• Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
• Integrated web server for monitoring and remote setting
• 1 RS485 for eNodTouch touch screen panel
• Optional Bluetooth communication

Continuous Belt Weighing

Signal processing

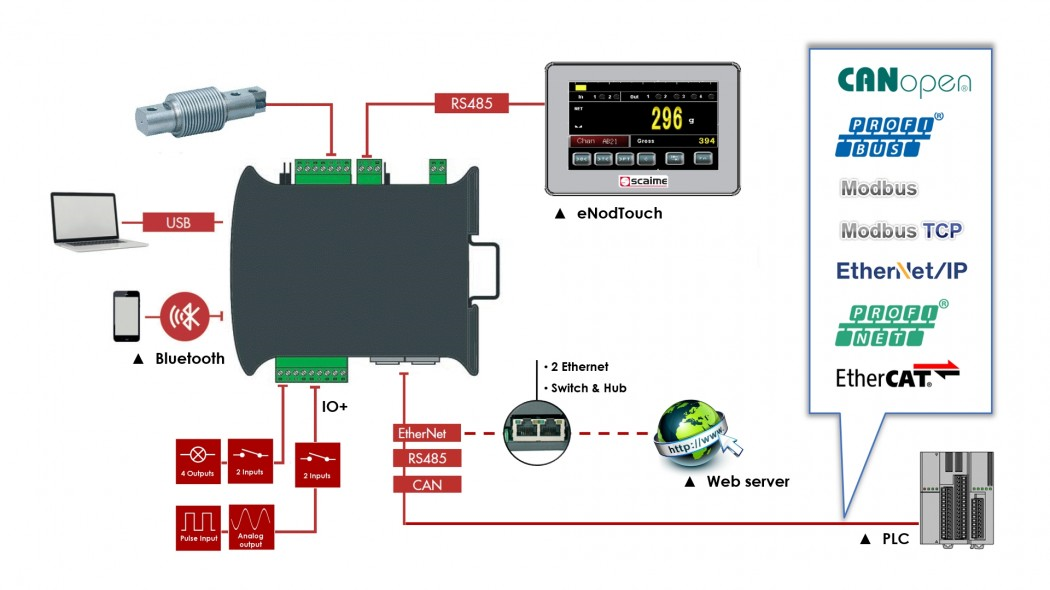

eNod4 Integration & Connectivity

The eNod4 weighing controllers are designed to be integrated into automated systems ensuring connectivity with the main industrial networks on
the market : CANOpen, Modbus-RTU, Modbus-TCP, Profibus, Profinet, EtherNet/IP, EtherCAT.

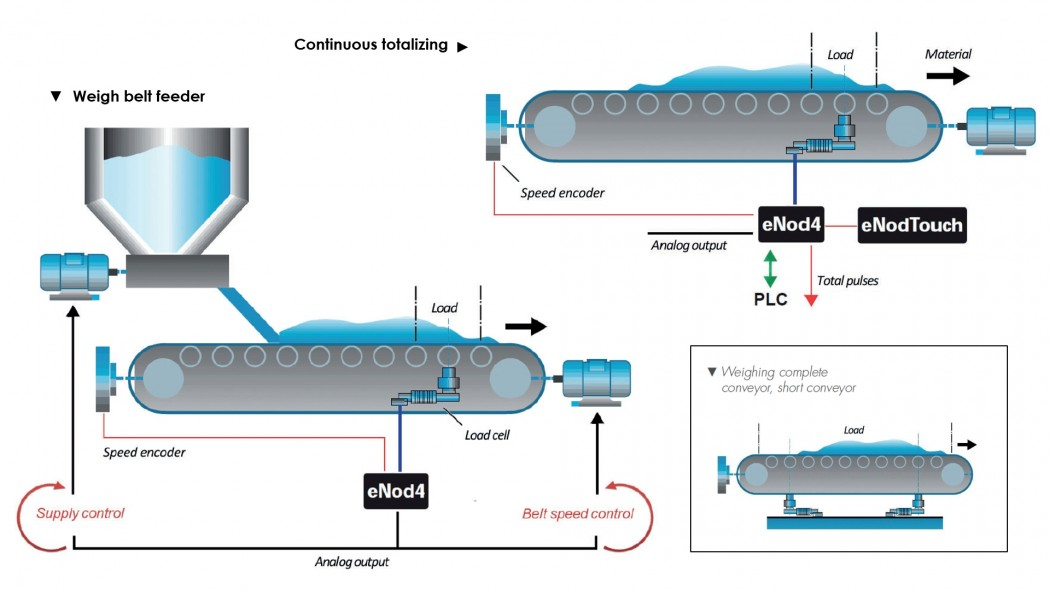

eNod4-B Continuous totalizing, Belt feeder

• Weight integration by unit of length
• Flow rate and continuous total weight calculation
• Accumulated pulse output function
• Management of loading cycle with targeted total
• Management of target flow
• Flow regulation by PID controller with action on belt speed or material feed.
• Automatic adjustment of PID parameters by self-learning

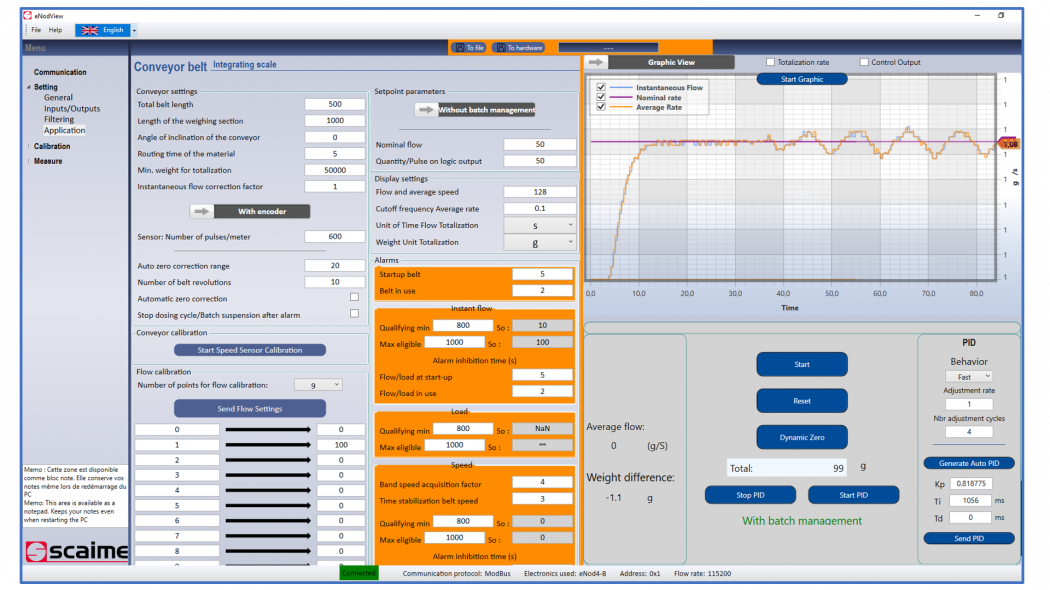

eNodView PC software

• Save and restore eNod4 configuration files
• Setting, calibration and eNod4 control
• Measurements, results and I/O graphical display
• Digital filters optimization by FFT analysis and eNod4 filter effect simulation
• Adjustment of PID parameters and setting the Loss-in-weight application

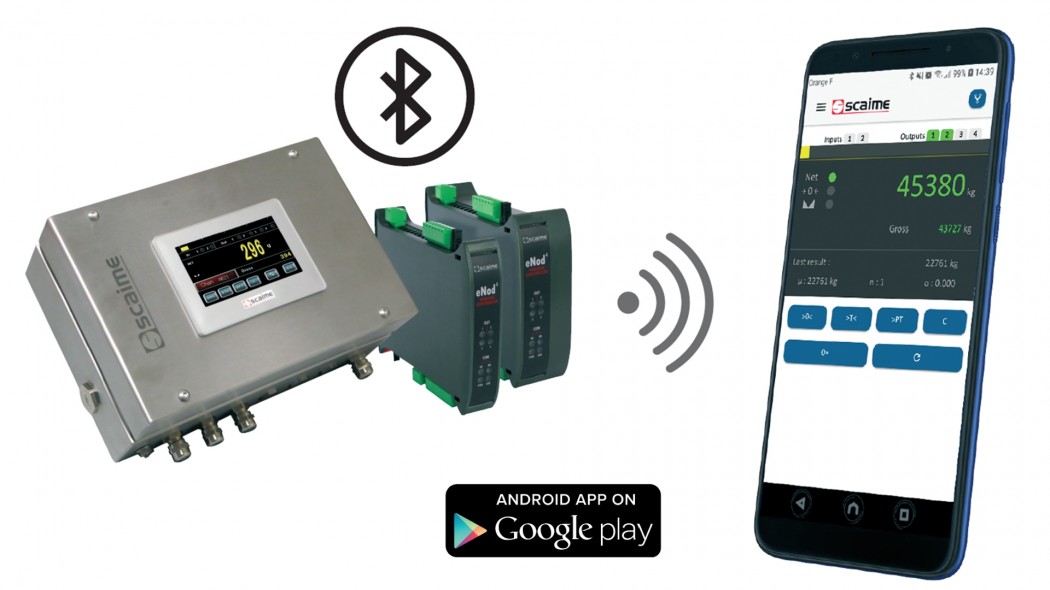

eNodApp Android mobile App

• App for Android smatphone or tablet
• Bluetooth connection with eNod4 (optional board)
• Read / write configuration parameters
• Measurements, results and I/O display
• Weighing chain calibration
• Control of eNod4 weighing application

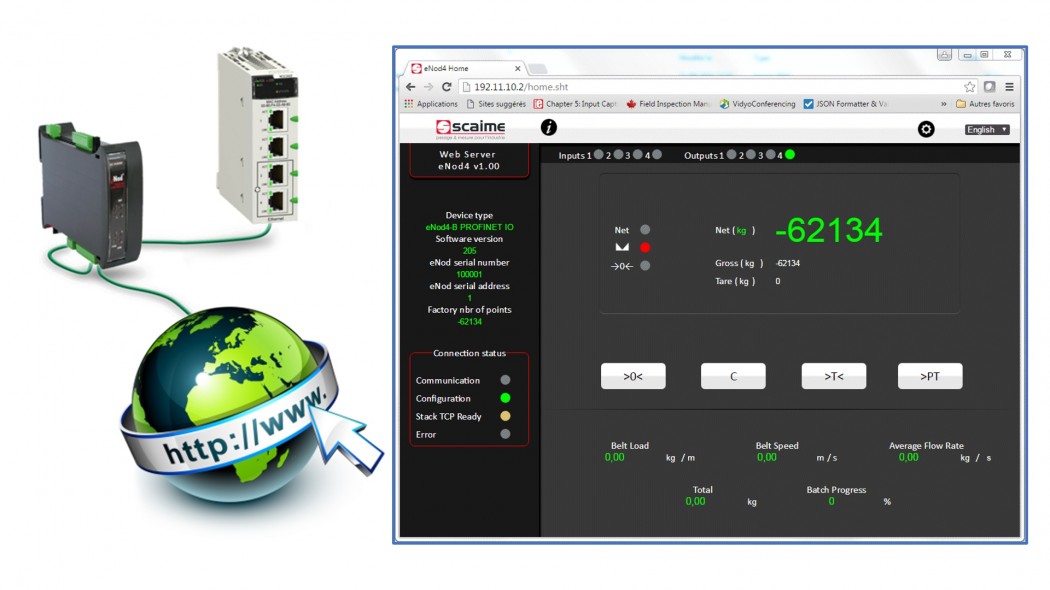

eNod4 Ethernet Web server

• Integrated Web server on all eNod4 Ethernet versions
• Read / write configuration parameters
• Measurements, results and I/O display
• eNod4 remote control
• Weighing chain calibration
