Flow control and totalisation on a conveyor belt

SCAIME offers controllers for belt scales and belt dosers. Easy to integrate into automated systems, they offer complete totalisation and flow-regulation functions.

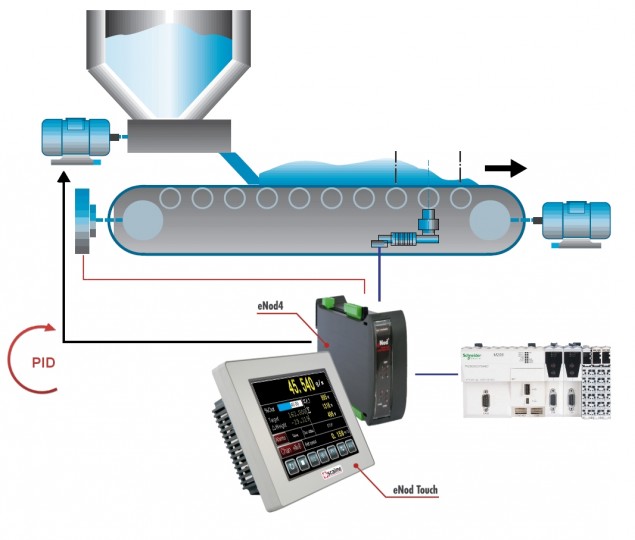

Continuous totalisation and flow control with the eNod4-B

SCAIME has developed the eNod4-B, a powerful and scalable weighing controller, equipped with an application for belt scales.

Continuous totaliser functions:

• Determination of belt speed and
  integration of weight by unit of length
• Flow calculation and totalisation of quantity
  of product being conveyed on the belt
• Load cycle management on attainment
  of a totalised weight setpoint

Belt doser functions:

• Supervision of hourly flow according to
  the programmed target, by PID adjustment
• Function for automatic adjustment of
  PID parameters by self-learning

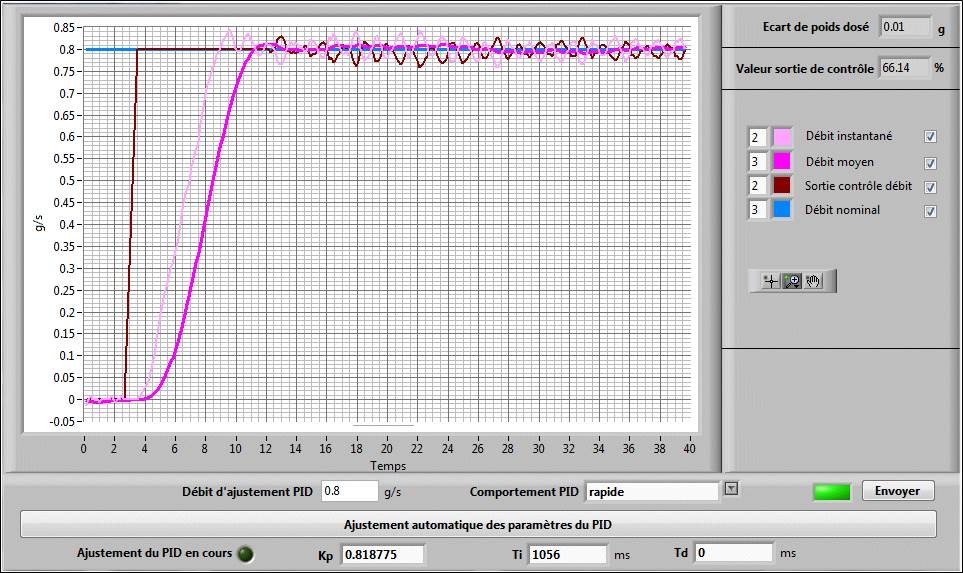

eNodView software

eNodView enables the configuration and calibration of all
products in the DVX/DVS or eNod range. It is also a powerful
program for signal acquisition and analysis, offering:

• temporal and frequential graphic visualisation of the signal,
• simulation and configuration of digital filters,
• graphic visualisation of flow and PID control output.
